Description

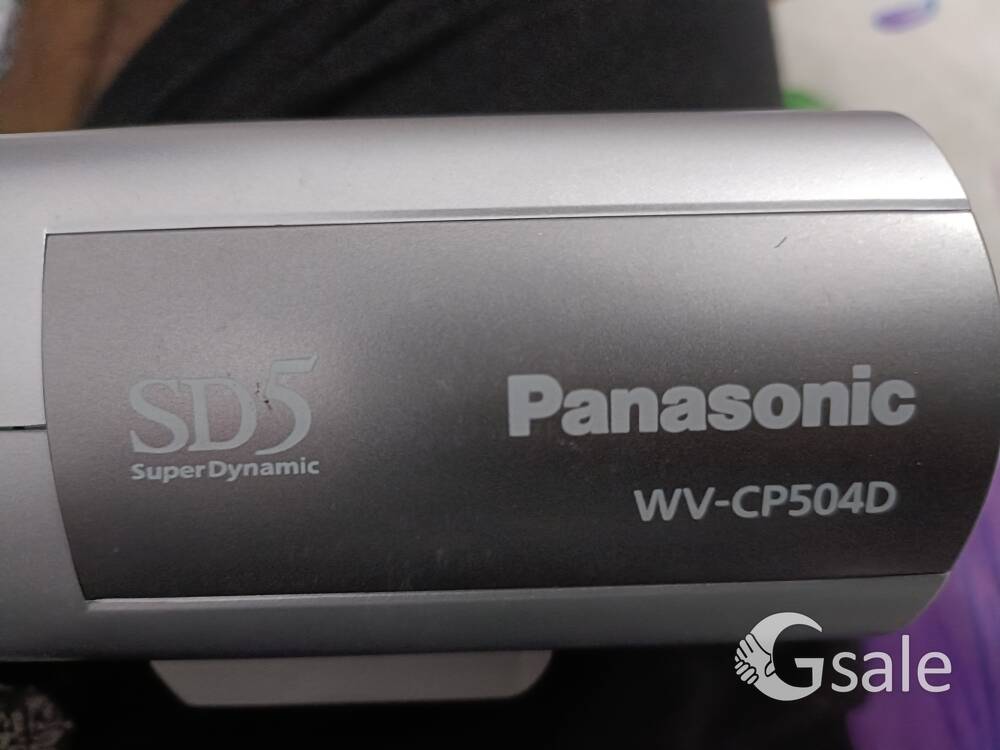

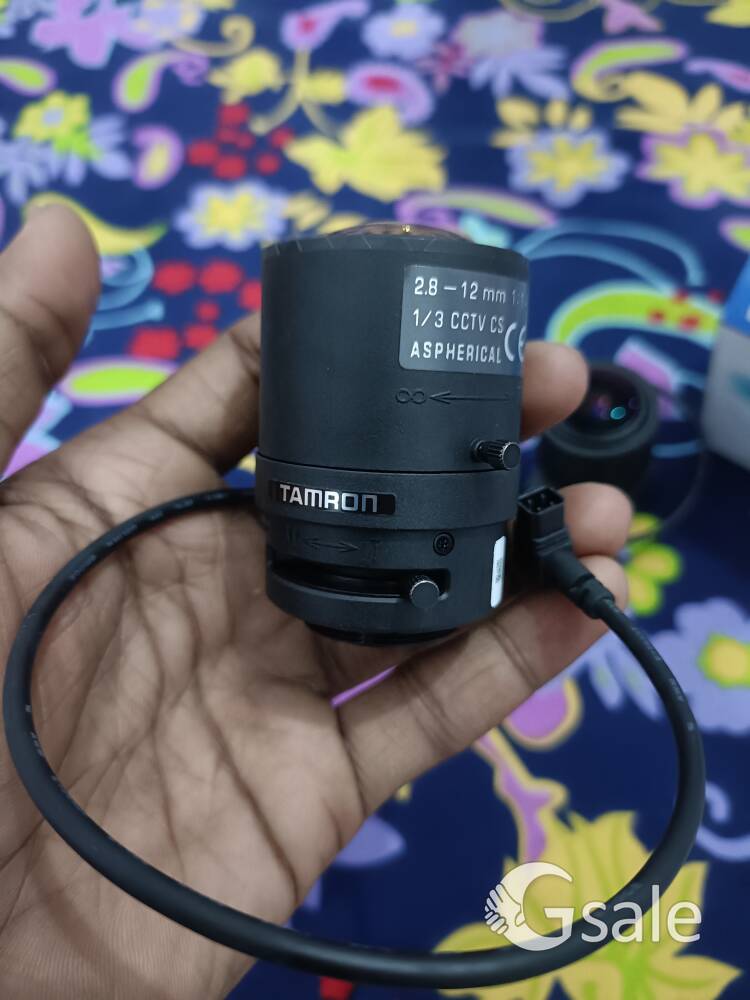

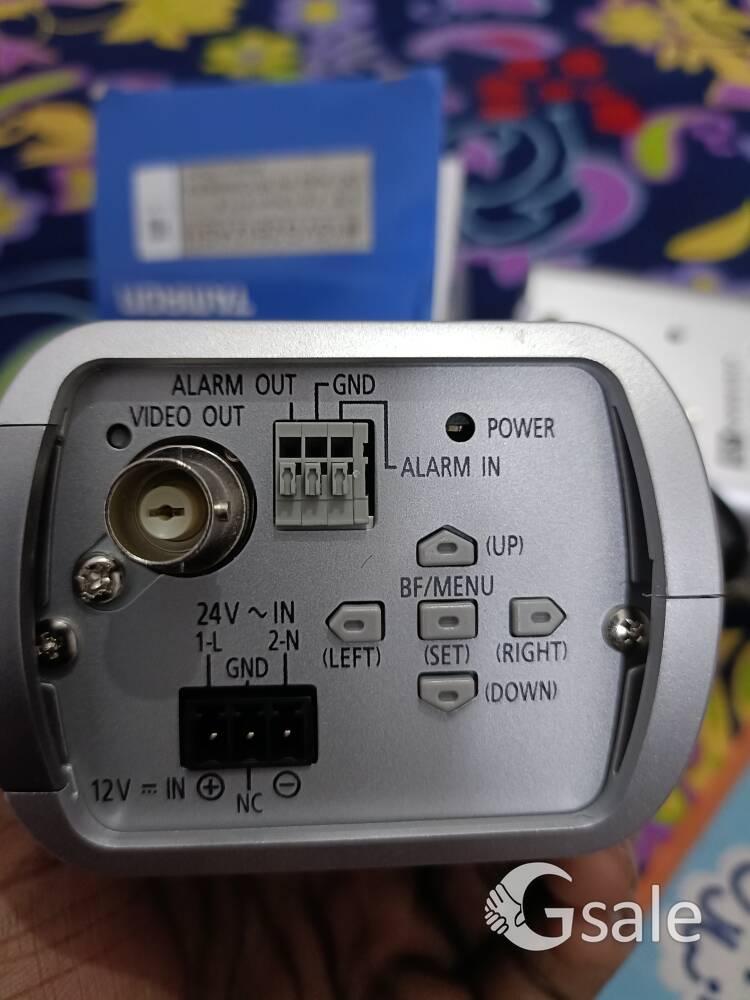

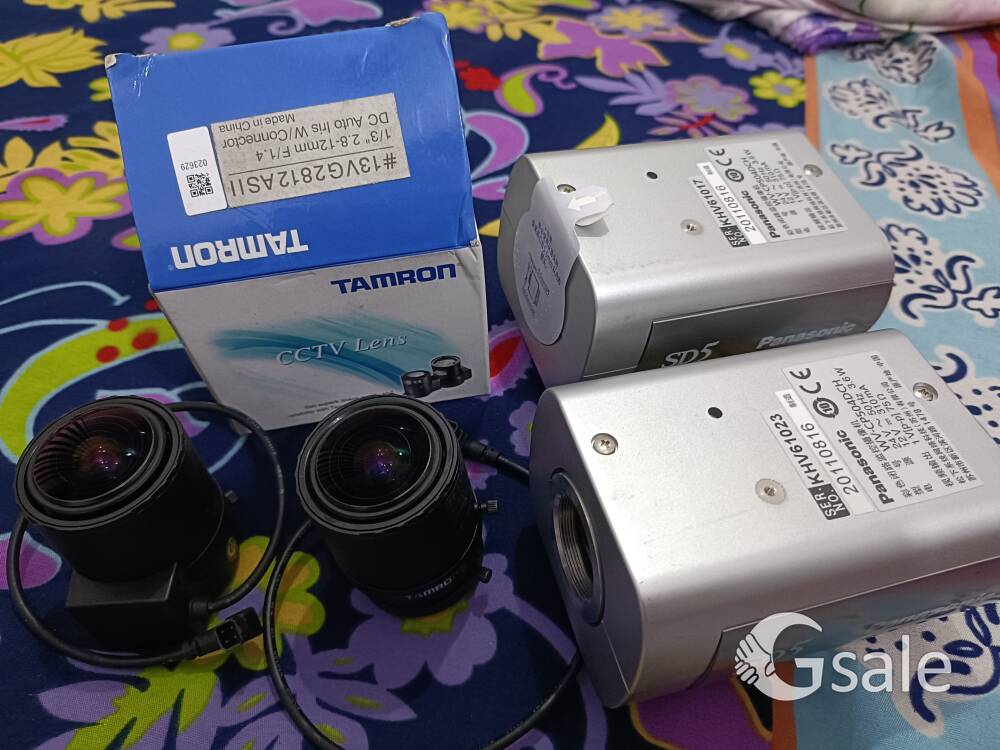

i-PRO Products Home Surveillance Products WV-CP504D Fixed Box Camera: Analog Camera WV-CP504D Fixed Box Analog Camera DISCONTINUED PRODUCT Super Dynamic 5 Day/Night Camera KEY FEATURE SPECIFICATIONS DOCUMENTATION DATABASE RELATED PRODUCTS COMPONENT SPECIFICATION Image Sensor 1/3 inch interline transfer CCD Effective Pixels NTSC : 976 (H) x 494 (V) PAL : 976 (H) x 582 (V) Scanning Mode 2:1 interlace scan Scanning Area 4.8 (H) x 3.6 (V) mm Scanning Frequency Horizontal: 15.734 kHz Vertical: 59.94 Hz Horizontal: 15.625 kHz Vertical: 50 Hz Scanning Line 525 lines 625 lines Horizontal Resolution 650 TV lines typical at color mode, 700 TV lines at B/W mode Minimum Illumination Color: 0.1 lux (SENS UP: OFF), 0.003 lux (SENS UP: 32x) at F1.4 B/W: 0.01 lux (SENS UP: OFF), 0.0003 lux (SENS UP: 32x) at F1.4 Signal-to-Noise Ratio 50 dB (AGC Off, Weight On) White Balance ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K), or AWC (2,000 ~ 10,000 K) Light Control ALC / ALC+ / ELC AGC ON (HIGH / MID / LOW) / OFF Super Dynamic 5 ON / ON (i-VMD) / OFF (with BLC masking 8 x 6 areas) Dynamic Range 52 dB typical (Super Dynamic 5 ON) 54 dB typical (Super Dynamic 5 ON) Electronic Shutter OFF (1/60), 1/100, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 s OFF (1/50), 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 s Electronic Sensitivity Up OFF / AUTO (2x, 4x, 6x, 10x, 16x, 32x) / FIX (2x, 4x, 6x, 10x, 16x, 32x) Digital Noise Reduction High / Low Black and White Mode Mode: AUTO1 / AUTO2 / ON / OFF with external control, Level: High / Low Digital Zoom ON (up to 2x) / OFF Scene File 2 patterns i-VMD (Intelligent-Video Motion Detection) Video Motion Detection Object Detection (Removal and Left Behind) Scene Change Detection Privacy Zone ON (Gray / Mosaic) or OFF Auto Image Stabilizer ON / OFF Camera Title Up to 16 characters Lens Mount CS-mount Lens ALC Drive DC Back Focus Adjustment ABF (AUTO / PRESET / FIX), MANUAL-ADJ Synchronization Internal (INT), Multiplexed Vertical Drive (VD2), Line-Lock (LL) Video Output 1.0 V [P-P] / NTSC composite 75 Ω / BNC Connector Multiplexed VD2 and control data capable 1.0 V [P-P] / PAL composite 75 Ω / BNC Connector Multiplexed VD2 and control data capable External I/O Terminals ALARM IN: 1 (OFF / ALARM / VMD PERMIT / BW / SCENE2) ALARM OUT: 1 (OFF / ALARM / BW) Setup Method OSD setup menu Language English, Russian (For setup menu and camera title), German, French, Italian, Spanish (For setup menu), Japanese (Only for camera title. Setup menu is in English.) Safety/EMC Standard UL (UL60065), FCC (Part15 ClassA), C-UL (CAN/CSA C22.2 No.60065), DOC (ICES003 ClassA) CE (EN60065, EN55022 ClassB, EN55024) Power Source and Power Consumption 24 V AC 60 Hz, 3.6 W 12 V DC, 310 mA 24 V AC 50 Hz, 3.6 W 12 V DC, 310 mA Ambient Operating Temperature –10 °C ~ +50 °C (14 °F ~ 122 °F) Ambient Operating Humidity 90 % or less (without condensation) Dimensions 72 mm (W) x 65 mm (H) x 103.5 mm (D) (2-13/16"" (W) x 2-9/16"" (H) x 4-1/16"" (D)) Weight (Approx.) 350 g (0.77 lbs.)
